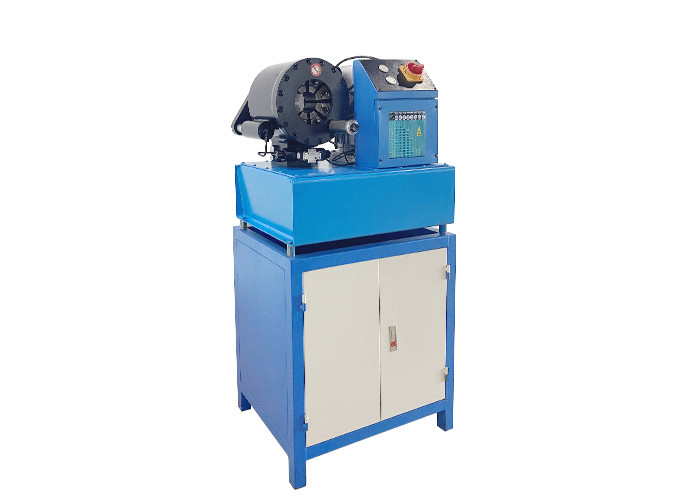

Hyd Hose Crimping Machine Portable Pipe Pressing Hydraulic Hose Maker Machine

  • Hyd Hose Crimping Machine Portable Pipe Pressing Hydraulic Hose Maker Machine
  • Hyd Hose Crimping Machine Portable Pipe Pressing Hydraulic Hose Maker Machine
  • Hyd Hose Crimping Machine Portable Pipe Pressing Hydraulic Hose Maker Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-E130
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 2inch 4SH
Die Sets 10 Color Blue
Max. Opening 25mm Crimping Force 640T
Product Name Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 630*450*1560mm Weight 190Kg
Highlight

Energy Saving Hose Crimping Machine

,

E130 Hose Crimping Machine

,

640T portable hose crimper
Leave a Message
Product Description



640T HYDRAULIC HOSE CRIMPING MACHINE MS-E130

DESCRIPTION



MS-E130 hose assembly crimping machine is with human design, easy to operate even for new user. With a machine rack, the height is proper for user to do crimping.



ADVANTAGES



1) Light weight, small sructure,

2) Advanced oil transfer design, improve the productivity,

3) Pressing with big force for big hose,

4) Diameter is controled by a high precision micrometer,

5) Thicken machine body.



TECHNICAL DATA



Model

MS-E130 Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

640 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

130

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

630 (mm)

Width

450 (mm)

Height

560 (mm)

Weight

190 (KG)



Hyd Hose Crimping Machine Portable Pipe Pressing Hydraulic Hose Maker Machine 0



130 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8 mm

 35

8*

8 - 10 mm

 35

10*

10 - 12 mm

 35

12*

12 - 14 mm

 35

14

14 - 16 mm

 60

16

16 - 20 mm

 60

20

20 - 22 mm

 60

22

22 - 26 mm

 60

26

26 - 30 mm

 70

30

30 - 38 mm

 70

38

38 - 46 mm

 70

46

46 - 54 mm

 80

54

54 - 64 mm

 80

64

64 - 69 mm

 80

69*

69 - 76 mm

 100



NOTE



1) Customized die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets.



OPTIONAL



1) Quick Change Tool

2) Quick Change Die Set Rack;

3) UC control;

4) Foot Pedal;

5) Pressure Gauge;

6) Normal Rack



► DOUBLE CONICAL MASTER DIE, BIG PRESSING FORCE



Hyd Hose Crimping Machine Portable Pipe Pressing Hydraulic Hose Maker Machine 1



► ACCURATE DIAMETER CONTROL RULER, EASY PRECISION ADJUSTMENT



Hyd Hose Crimping Machine Portable Pipe Pressing Hydraulic Hose Maker Machine 2



► HIGH QUALITY ELECTRO-MAGNETIC VALVE, STABLE PERFORMANCE



Hyd Hose Crimping Machine Portable Pipe Pressing Hydraulic Hose Maker Machine 3



► SHEET TO TEACH THE USER HOW TO CHOOSE DIE SETS



Hyd Hose Crimping Machine Portable Pipe Pressing Hydraulic Hose Maker Machine 4
