Used Finn Power Crimper For Sale High Pressure Hose Crimper P32 Crimping Machine

  • Used Finn Power Crimper For Sale High Pressure Hose Crimper P32 Crimping Machine
  • Used Finn Power Crimper For Sale High Pressure Hose Crimper P32 Crimping Machine
  • Used Finn Power Crimper For Sale High Pressure Hose Crimper P32 Crimping Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number P20
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 64mm Hose Size 1/4'' - 2''
Die Sets 10 Sets Color Blue Or Customized
Max. Opening 25mm Crimping Force 640T
Product P20 Hose Pressing Machine Application Workshop
System Pressure 31.5Mpa Voltage 220V
Size 630*450*600mm Weight 200Kg
Highlight

Finn Power High Pressure Hose Crimper

,

Finn Power Tube Pressing Machine

,

High Pressure Hose Crimper P20
Leave a Message
Product Description



Finn Power High Pressure Hose Crimper P20 Tube Pressing Machine

HYDRAULIC INDUSTRIAL PIPE CRIMPING MACHINE P20

DESCRIPTION



P20 hose crimper is a small size crimping machine for pressure hose assembly making. This machine is used to press the rubber hose, fitting and ferrules together, to get a assembled hose, which can be installed on hydraulic system. It can crimp not only steel ferrule, but also can press aluminium ferrule and copper ferrule.



It is a good choice for single hose production in hose repair workshop. For all kinds of hydraulic hose of excavator, loader, tractor, etc. engineering and construction machinery, like CAT, KOMASTU, CASE, HYUNDAI, DOOSAN most famous brand.



ADVANTAGES



1) High system pressure big pressing and swaging force,

2) Large production ability can produce max. 3000 units per day,

3) Micrometer with a high precision up to 0.01mm,

4) Can press steel ferrule, aluminium ferrule and copper ferrule.



TECHNICAL DATA



Model

P20 Pipe Pressing Machine

Crimping Range

14 - 64 (mm)

Crimping Force

640 (T)

Hose Size

1/4'' - 2'' (inch)

Max. Opening

25 (mm)

Die Sets

10

Die Set Type

P20

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V)

Motor Power

3 (KW)

Length

630 (mm)

Width

450 (mm)

Height

600 (mm)

Weight

200 (KG)

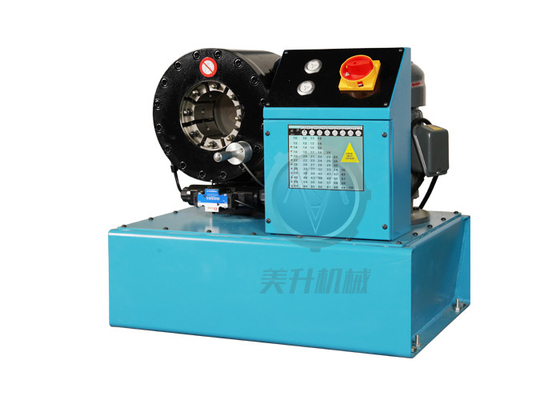

Used Finn Power Crimper For Sale High Pressure Hose Crimper P32 Crimping Machine 0

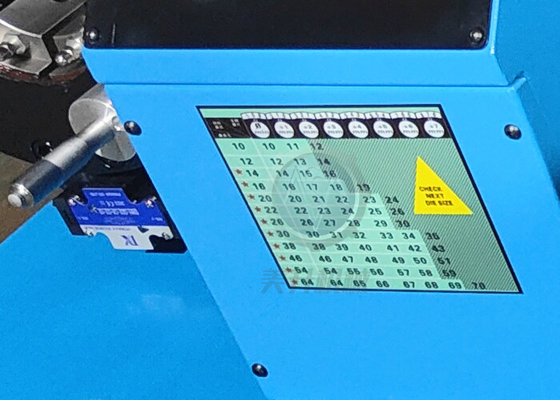

P20 HOSE CRIMPER MACHINE DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 14mm

 35

14

14 - 16mm

 60

16

16 - 20mm

 60

20

20 - 22mm

 60

22

22 - 26mm

 60

26

26 - 30mm

 60

30

30 - 38mm

 70

38

38 - 46mm

 70

46

46 - 54mm

 80

54

54 - 64mm

 80

64

64 - 69mm

 80

69*

69 - 76mm

 100



NOTE



1) Customized crimping die sets are available;

2) Special voltage 110V, 208V, 240V, 415V are availbale;

3) * for non standard die sets.



OPTIONAL ACCESSORIES



1) Quick Die Change Tool;

2) Die Set Rack/ Machine Stand;

3) UC/CNC Control;

4) Foot Pedal Switch;

5) Pressure Gauge;

6) Normal Stand.





► APPLICATION FOR P20 HYDRAULIC HOSE CRIMPING MACHINE



Used Finn Power Crimper For Sale High Pressure Hose Crimper P32 Crimping Machine 1
