High Pressure Hose Crimper Hydraulic Pipe Fitting Machine Crimping Hose Tool

  • High Pressure Hose Crimper Hydraulic Pipe Fitting Machine Crimping Hose Tool
  • High Pressure Hose Crimper Hydraulic Pipe Fitting Machine Crimping Hose Tool
  • High Pressure Hose Crimper Hydraulic Pipe Fitting Machine Crimping Hose Tool
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51DC
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 300T
Product Name 51DC High Pressure Hose Crimper Application Service
System Pressure 31.5Mpa Power 2.2KW
Size 650*600*600mm Weight 170Kg
Highlight

Forged Steel High Pressure Hose Crimper

,

Flexible High Pressure Hose Crimper

,

51DC high pressure hose crimping machine
Leave a Message
Product Description

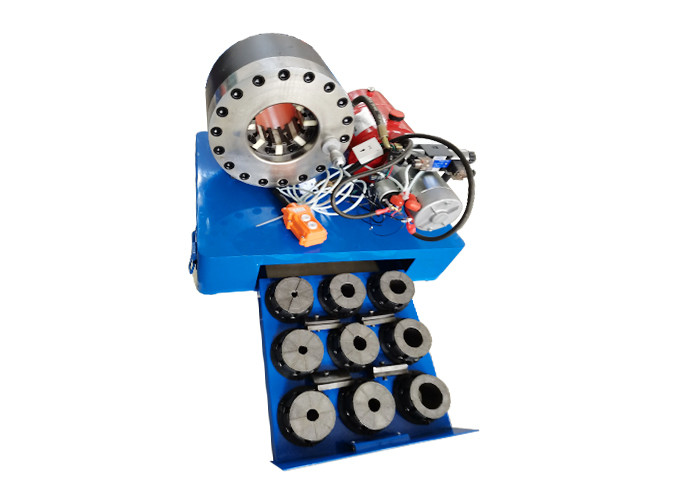

HIGH PRESSURE HOSE CRIMPER MS-51DC

DECRIPTION

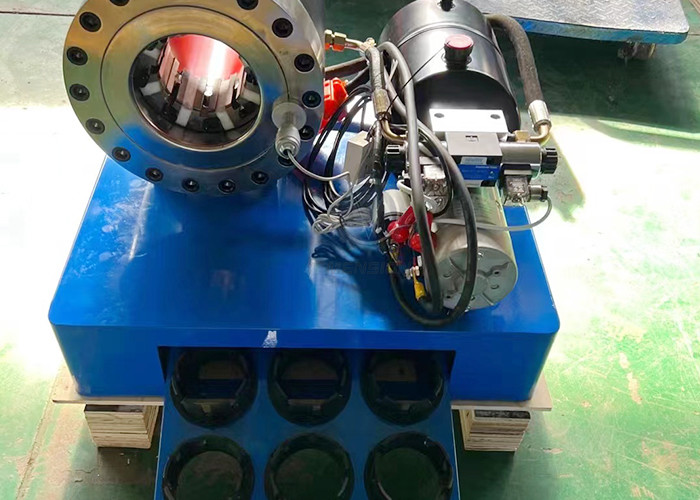

MS-51DC is a hose crimping machine drive by a mobile car battery 12V or 24V. It is more flexible in crimping hose assembly.


MAIN FEATURES


1. Mobile crimping, more convenient;

2. Compact structure, low shipping cost and maintenance charge;

3. Die sets high hardness, long time using.

TECHNICAL DATA



Model

MS-51DC Hydraulic Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

300 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

650 (mm)

Width

600 (mm)

Height

600 (mm)

Weight

170 (KG)


High Pressure Hose Crimper Hydraulic Pipe Fitting Machine Crimping Hose Tool 0


51 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 15mm

 35

15

15 - 19mm

 60

19

19 - 23mm

 60

23

23 - 26mm

 60

26

26 - 31mm

 60

31

31 - 36mm

 70

36

36 - 41mm

 70

41

41 - 47mm

 70

47

47 - 55mm

 80

55

55 - 63mm

 80

63

63 - 69mm

 80

69*

69 - 76mm

 100


 NOTE


• * for non standard die sets;
• Customized die sets are available;
• AC voltage 220V, 380V, 110V, 208V, 240V, 415V are availbale;
