Rubber Hose Crimping Machine Hydraulic Hose Press Pipe Crimping Machine

  • Rubber Hose Crimping Machine Hydraulic Hose Press Pipe Crimping Machine
  • Rubber Hose Crimping Machine Hydraulic Hose Press Pipe Crimping Machine
  • Rubber Hose Crimping Machine Hydraulic Hose Press Pipe Crimping Machine
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-51KH
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2inch
Die Sets 10 Color Blue
Max. Opening 30mm Crimping Force 500T
Product Name 51KH Hose Pressing Machine Application Workshop
System Pressure 31.5Mpa Power 3KW
Size 670*430*1520mm Weight 310Kg
Highlight

Rubber hydraulic pipe pressing machine

,

51KH pipe pressing machine

,

51KH hydraulic hose pipe pressing machine
Leave a Message
Product Description

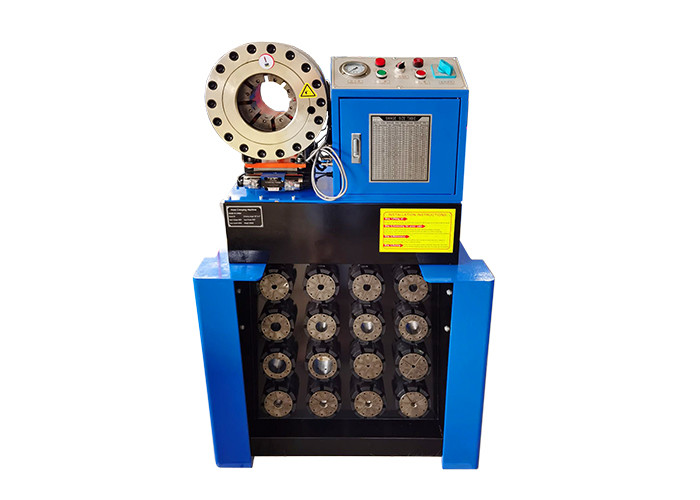

RUBBER HOSE PRESSING MACHINE MS-51KH

DESCRIPTION



MS-51KH hose pressing machine is capable of crimping high pressure stainless steel braided hose up to 2 inch four or six layer. The die sets can be installed at one time, to save the time, with a special design quick change tool.



MAIN FEATURES



1. Big crimping range from 1/4 to 2 inch;

2. Intelligent operate panel, more convenient;

3. Easy die sets installing, improve the efficiency;

4. High accurate positioning device.



TECHNICAL DATA



Model

MS-51KH Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

500 (T)

Hose Size

1/4 - 2 (inch)

Max. Opening

30 (mm)

Die Sets

10

Die Set Type

51

System Pressure

31.5 (Mpa)

Accuracy

0.05 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3 (KW)

Length

670 (mm)

Width

430 (mm)

Height

1520 (mm)

Weight

310 (KG)



Rubber Hose Crimping Machine Hydraulic Hose Press Pipe Crimping Machine 0

51 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 35

8*

8 - 10mm

 35

10*

10 - 12mm

 35

12*

12 - 15mm

 35

15

15 - 19mm

 60

19

19 - 23mm

 60

23

23 - 26mm

 60

26

26 - 31mm

 60

31

31 - 36mm

 70

36

36 - 41mm

 70

41

41 - 47mm

 70

47

47 - 55mm

 80

55

55 - 63mm

 80

63

63 - 69mm

 80

69*

69 - 76mm

 100



NOTE



• * for non standard die sets;

• Customized die sets are available;

• Special voltage 110V, 208V, 240V, 415V are availbale;
