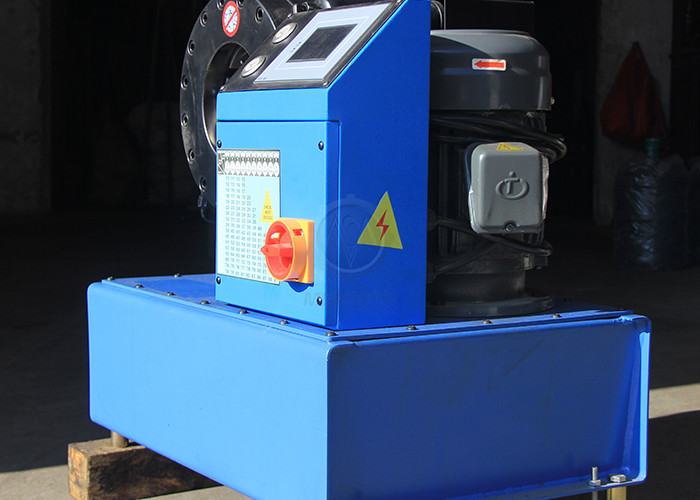

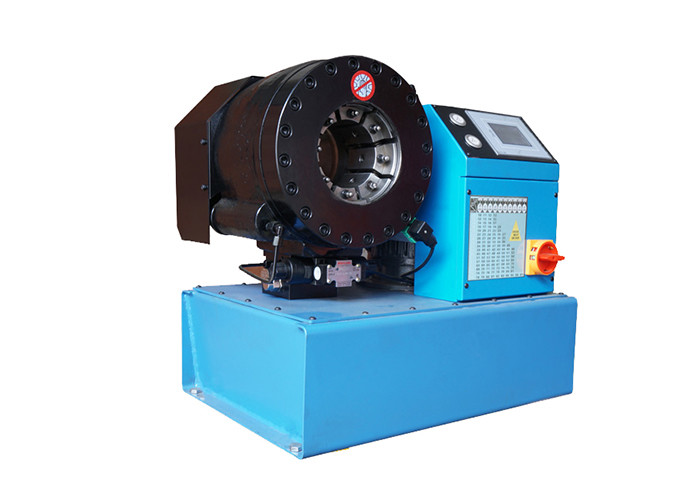

Brake Hose Crimping Machine Hydraulic Hose End Crimper Air Hose Ferrule Crimper

  • Brake Hose Crimping Machine Hydraulic Hose End Crimper Air Hose Ferrule Crimper
  • Brake Hose Crimping Machine Hydraulic Hose End Crimper Air Hose Ferrule Crimper
  • Brake Hose Crimping Machine Hydraulic Hose End Crimper Air Hose Ferrule Crimper
Place of Origin CN
Brand Name MENSION
Certification CE RoHS
Model Number MS-NC130
Minimum Order Quantity 1 Set
Price Contact Us
Packaging Details One Plywood For One Set
Delivery Time 2 - 7 Working Days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000 Sets Per Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Crimping Range 14 - 87mm Hose Size 1/4 - 2.5inch
Die Sets 13 Color Blue
Max. Opening 31mm Crimping Force 650T
Product Name NC130 Brake Hose Crimping Machine Application Workshop
System Pressure 31.5Mpa Power 3.75KW
Size 650*550*650mm Weight 240Kg
Highlight

NC130 Brake Hose Crimping Machine

,

Clear Display Brake Hose Crimping Machine

,

NC130
Leave a Message
Product Description



NUMERICAL BRAKE HOSE CRIMPING MACHINE MS-NC130

DESCRIPTION



MS-NC130 brake hose crimper machine use the most advanced cylinder making technology and famous PLC control systems, making crimping more intelligent and humanized. It is suitable for high pressure rubber hose from 6mm to 51mm crimping with big crimping force. Even for 3 inch hose pressing.



ADVANTAGES



1. Quick die set change tool, save time;

2. High closing and opening speed;

3. Standard foot pedal to free both the hands;

4. Compact structure but big force with unique design.



TECHNICAL DATA



Model

MS-NC130 Brake Hose Crimping Machine

Crimping Range

14 - 87 (mm)

Crimping Force

650 (T)

Hose Size

1/4 - 2.5 (inch)

Max. Opening

31 (mm)

Die Sets

13

Die Set Type

P32

System Pressure

31.5 (Mpa)

Accuracy

0.01 (mm)

Control

MS

Standard Voltage

220 (V) / 380 (V)

Motor Power

3.75 (KW)

Length

650 (mm)

Width

550 (mm)

Height

650 (mm)

Weight

240 (KG)



Brake Hose Crimping Machine Hydraulic Hose End Crimper Air Hose Ferrule Crimper 0

P32 HOSE CRIMPER DIE SETS



Die No.

Crimping Range

 Length

6*

6 - 8mm

 55

8*

8 - 10mm

 55

10*

10 - 12mm

 55

12*

12 - 14mm

 55

14

14 - 16mm

 55

16

16 - 19mm

 55

19

19 - 22mm

 55

22

22 - 26mm

 70

26

26 - 30mm

 70

30

30 - 34mm

 70

34

34 - 39mm

 75

39

39 - 45mm

 75

45

45 - 51mm

 90

51

51 - 57mm

 90

57

57 - 63mm

 100

63

63 - 69mm

 110

69

69 - 78mm

 110



NOTE



- * for non standard die sets;

- Customized die sets are available;

- Special voltage 110V, 208V, 240V, 415V are availbale;



Brake Hose Crimping Machine Hydraulic Hose End Crimper Air Hose Ferrule Crimper 1



Brake Hose Crimping Machine Hydraulic Hose End Crimper Air Hose Ferrule Crimper 2



Brake Hose Crimping Machine Hydraulic Hose End Crimper Air Hose Ferrule Crimper 3
